ERLUS E 58 PLUS
Technical data
| Size: | aprox. 36.0 x 54.0 cm |
| Gauge: | aprox. 40.5 - 43.5 cm |
| Average cover width: | aprox. 30.5 cm |
| Quantity required per m²: | from 7.4 Pieces |
| Weight per m² in accordance with DIN 1055 incl. battens: | aprox. 0.55 kN/m² |
| Real weight without battens: | aprox. 43,0 - 46,5 kg/m² |
| Pallet capacity: | 168 Pieces |
| Pallet weight: | aprox. 1,151 kg |
| Bundle capacity: | 4 Pieces |
| Hail resistance class: | 5 |
| Gauge class: | depending on model |
| Average eaves gauge | aprox. 42 cm |

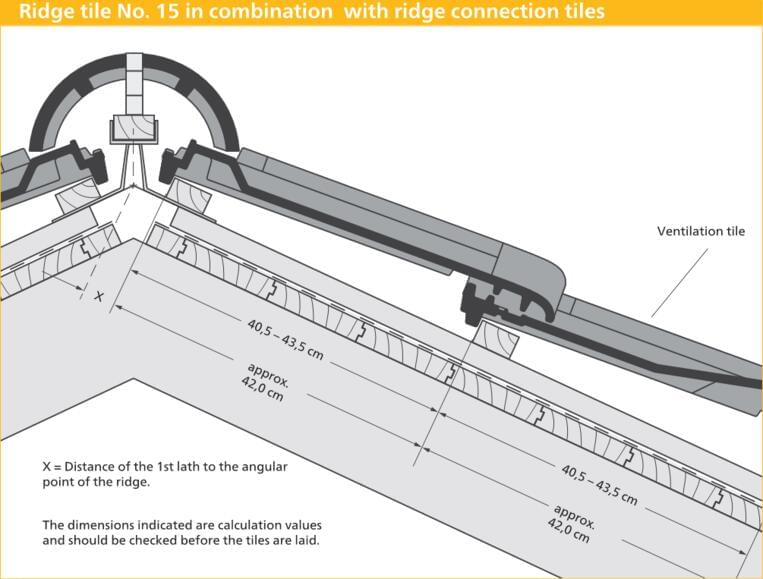

| X (distance) in mm | Ridge connection tile1) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Roof pitch in ° | 10° | 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | 60° |
| Ridge tile no. 15 | - | - | - | - | - | - | - | - | - | - | - |
| Ridge ventilation tile no. 15 Lü | 60 | 55 | 55 | 50 | 40 | 40 | 40 | 45 | 45 | 45²⁾ | 40²⁾ |
| Ridge tile no. 18 | 60 | 55 | 50 | 40 | 30 | 20 | 15 | 10 | - | - | - |
| Ridge ventilation tile no. 19 Lü | 40 | 35 | 40 | 35 | 30 | 20 | 15 | 10 | - | - | - |
| Ridge tile no. 21 | 60 | 55 | 50 | 40 | 30 | 20 | 15 | 10 | - | - | - |
| X (distance) in mm | Standard tiles2) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Roof pitch in ° | 10° | 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | 60° |
| Ridge tile no. 15 | 90²⁾ | 85²⁾ | 85²⁾ | 75²⁾ | 65²⁾ | 60²⁾ | 55²⁾ | 50²⁾ | 45²⁾ | - | - |
| Ridge ventilation tile no. 15 Lü | - | - | - | - | - | - | - | - | - | - | - |
| Ridge tile no. 18 | 40²⁾ | 35²⁾ | 45²⁾ | 40²⁾ | 35²⁾ | 45²⁾ | 45²⁾ | 45²⁾ | 45²⁾ | 35²⁾ | 20²⁾ |
| Ridge ventilation tile no. 19 Lü | - | - | - | - | - | - | - | - | - | - | - |
| Ridge tile no. 21 | - | - | - | - | - | - | - | - | - | - | - |
1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap
Assignment of additional measures for the Ergoldsbacher E58 PLUS®
According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild, regular roof pitch 20°, minimum roof pitch 10°, according to the generally accepted rules of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.
Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.
Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)
| roof pitch | min. req. | inc. dem. |
|---|---|---|
| ≥ 20° | Class 5 | Class 4 |
| from < 20° to ≥ 16° | Class 4 | Class 3 |
| from < 16° to ≥ 12° | Class 3 | Class 2 |
| from < 12° to ≥ 10° | Class 1 | Class 1 |
| roof pitch | min. req. | inc. dem. |
|---|---|---|
| ≥ 20° | Class 5 | Class 4 |
| from < 20° to ≥ 16° | Class 4 | Class 3 |
| from < 16° to ≥ 12° | Class 3 | Class 2 |
| from < 12° to ≥ 10° | Class 1 | Class 1 |
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are
to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further
increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the
manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.),
as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account.
See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are
to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further
increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the
manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.),
as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account.
See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

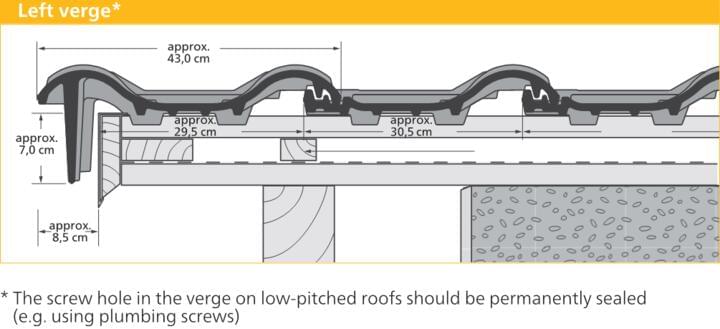

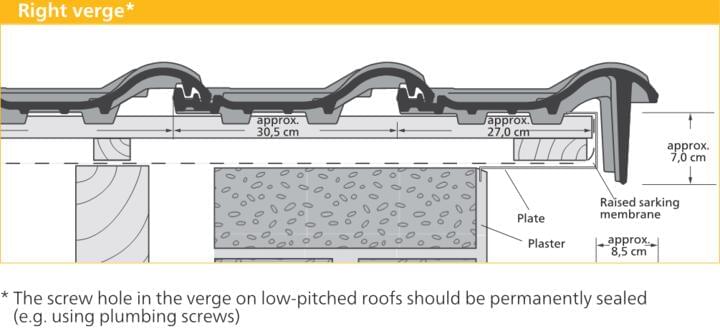

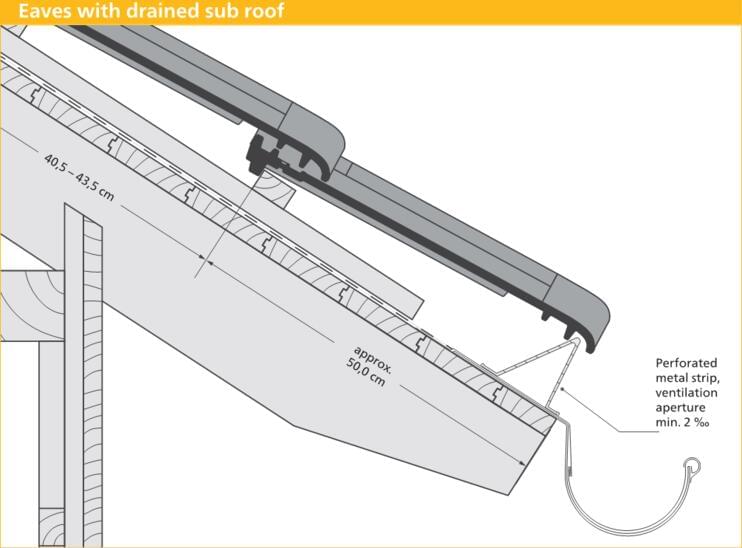

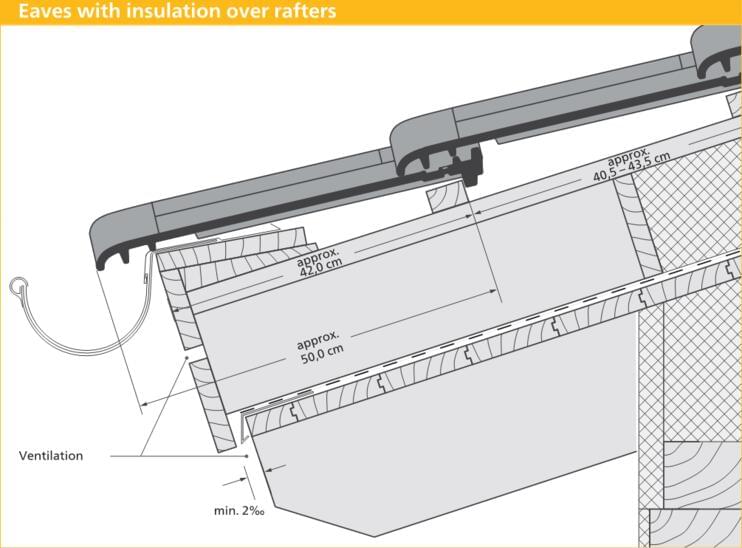

Technical drawings
These are the advantages of the
ERLUS E 58 PLUS®
Fine ceramic surface
Perfect for roof renovation
Hail resistance class 5 the first certified European roof tile
Especially robust and break-proof
Very easy to handle thanks to the 4-tile corner, bundles of 4
20° standard roof pitch
Sliding range 30 mm
Profitable for large surfaces, approx. 7,4 - 8 pcs./m²
Standard tile
Standard tile
ERLUS Standard Accessories
Slim tile
Verge tile left
Verge tile right
Double roll tile
Ridge connection tile
Ridge connection verge tile left
Ridge connection verge tile right
Ridge connection double roll tile
Pent roof tile
Pent roof verge tile left
Pent roof verge tile right
Ventilation tile
Ridge tile no. 15
Ridge end tile no. 15
Ridge compensation tile no. 15
Ridge ventilation tile no. 15 Lü
Ridge beginning tile no. 15 Lü
Ridge end tile no. 15 Lü
Ridge tile no. 18
Ridge end tile no. 18
Ridge compensation tile no. 18
Ridge ventilation tile no. 19 Lü
Ridge beginning tile no. 19 Lü
Ridge end tile no. 19 Lü
Ridge tile no. 21
Ridge end tile no. 21
Ridge compensation tile no. 21
ERLUS Special Accessories
Aluminium sanitary ventilator with base tile
Aluminium aerial with base tile
Aluminium solar outlet with base tile
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile

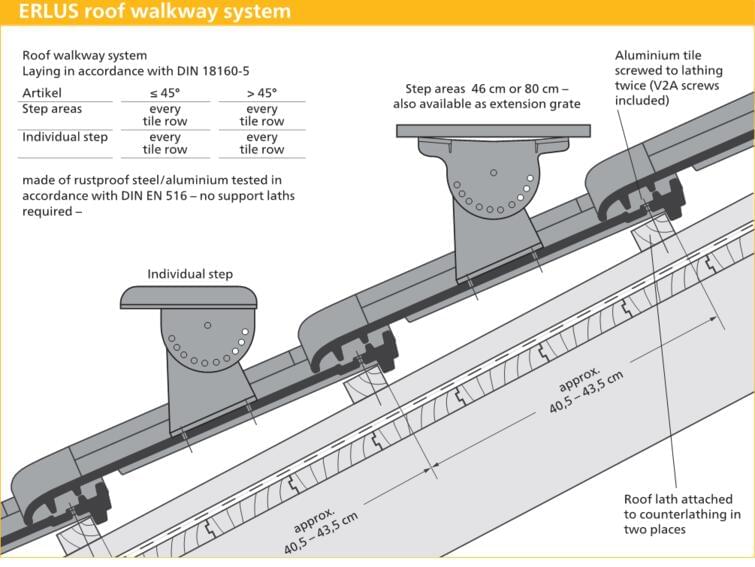

Aluminium step with base tile
Aluminium step grate 50 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile
Aluminium solar panel holder with base tile
Ceramic thermal exhaust gas through tile, Ø 70 / 110
Ceramic ridge end disc with ERLUS-logo
Ceramic extension plate universal for ridge end tile
Ceramic hip cap no. 15 N
Ceramic hip cap no. 18 N
Ceramic hip cap für ridge beginning tiles no. 19
Ceramic hip cap for ridge end tiles no. 19
Ceramic hip cap no. 21 N
Ceramic hip cap with four outlets for rigde tiles
Ceramic hip start for ridge tiles no. 18
Ceramic hip start for ridge tiles no. 19
Ceramic hip start for ridge tiles no. 21 N
ERLUS universal solar module support, incl. ventilation tile
ERLUS universal storm clips I L for battens 30/50 mm
Ridge clips no. 15/17
Ridge clips no. 15/17 Lü
Ridge clips no. 18/21
Ridge clips no. 19 Lü
Aluminium ridge ventilation strap
Eave protection tape
Eave ventilation comb, PVC
Aluminium ridge end disc
Roof surfaces
Copper brown
Red
Black matt
Antracite Completed projects
Ergoldsbacher E 58 PLUS® - Red
Ergoldsbacher E 58 PLUS® - Red
Ergoldsbacher E 58 PLUS® - Copper brown
Ergoldsbacher E 58 PLUS® - Copper brown
Ergoldsbacher E 58 PLUS® - Copper brown
Ergoldsbacher E 58 PLUS® - Copper brown
Ergoldsbacher E 58 PLUS® - Red
Ergoldsbacher E 58 PLUS® - Red
Ergoldsbacher E 58 PLUS® - Red The E58 in PLUS size for efficient laying
This elegant large-surface tile sets standards: The Ergoldsbacher E58 PLUS® is the first flat
roof tile in Europe to achieve hail resistance class 5. This robust tile is also particularly raintight,
as its size results in fewer joints on the roof surface. It is also cost-effective, easy to lay (sliding
range up to 30 mm) and therefore especially well-suited for large-surface renovation projects.
Quantity required per m²: from 7.4 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 20 °
